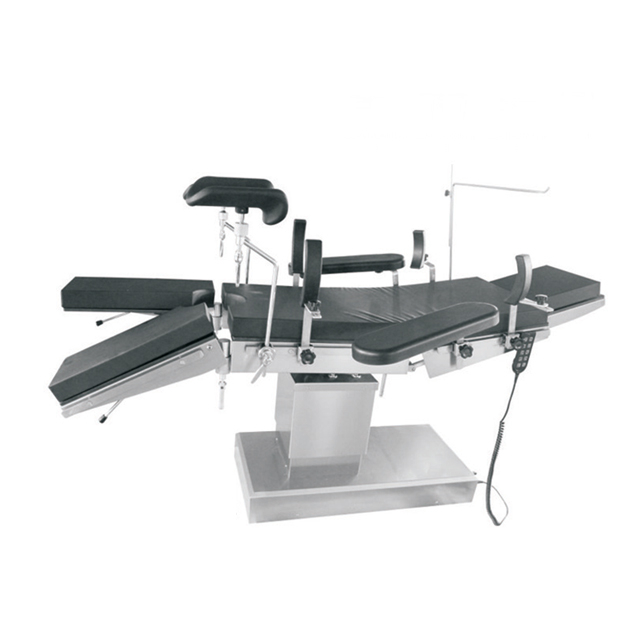

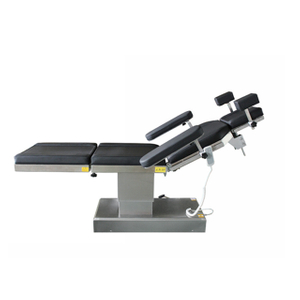

ZQ-OTD501 Multi Function Electric Operating Table Surgical Bed

The electric integrated operation bed, which is applied to comprehensive operations for thoracic surgery, abdominal surgery, brain surgery, ophthalmology, otolaryngology, gynecology and obstetrics, urology, orthopedics, etc, which can be used in conjunction with the C-arm X-ray machine

1.      The main body position adjustment such as table lifting, front and rear tilting, left and right tilting, translation, back plate folding, etc are all realized by keystroke operation and linear actuator drive

2.      The table can be moved longitudinally, and can be used for X-ray inspection or film taking in conjunction with the c-arm

3.      The table board is made of high-quality acrylic board. The mattress adopts slow recovery memory foam molding Memory foam mattress, evenly sharing the loading pressure, with anti-corrosion, acid and alkali resistance, breathable, easy to clean and other advantages, can achieve natural shaping based on the temperature of the patient to effectively prevent bedsore;

4.      The leg plate can be disassembled and easy to adjust by manual rotating outreaching and downward folding, very convenient for urological surgery;

5.      The head and leg plates are removable and easy to operate to provide more flexible space for operation

6.      The hand-held controller adopts 24V DC voltage, which is easy to operate, safe and  reliable

7.      The operating table is made of medical grade 304 stainless steel material, whose surface is treated with special matt, more modern and more convenient for cleaning

8.      High-strength stainless steel bottom cover has strong pressure resistance and corrosion resistance, and is easy to clean;

9.      The base of the operating table has the function of fixing or moving and the bottom is equipped with wheels, which is flexible in movement and reliable in movement and reliable in fixing.

10.   The table can be fitted with built-in waist bridge, to provide convenience for bile, kidney and other operations

11.   The main action of the operating table are as follows: The electric device, which is used to lift the table to tilt the table forward, back, left and right, to fold and rotate the back plate, and to translate the bed, is composed of a controller, a linear actuator, etc. the haed plate and back plate are folded and rotated by air spring. The machinery controls the rise  of the waist plate

12.   The electronic control part is mainly composed of power supply device, control button box, etc. The power supply for the operating table is to change the external 220AC into 24V DC drive motor by the power supply device.

Main technical parameters

The size of the table2020(±20)*500(±20)mm

Table height minimum 730(±20)--maximum 1030(±20)mm

The longitudinal translation of the table 380± 20mm

Left and right inclination of the table >20°

Forward inclination of the table≥25°

Backward inclination of the table≥20°

Back plate upward folding≥75°

Back plate downward folding≥15°( air spring)

Leg plate downward folding 90 which is a shaft type that can be unfolded to 1800 and can be disassembled (manual)

head plate folding up: 35°, folding down: 90°

Rated load-bearing 135kg

Waist bridge: 120mm up and down
