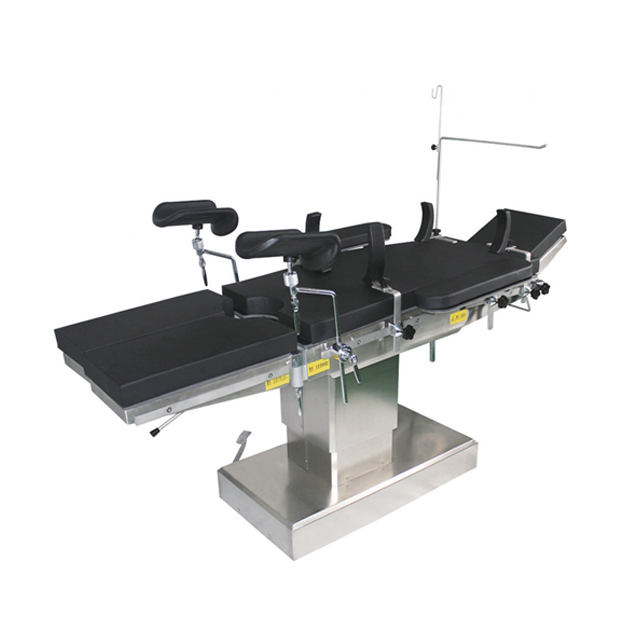

ZQ-OTD301 Electrical Three Function Operation Table Electric Top Selling Surgical Bed

Electric integrated operation bed is applied to comprehensive operation table for chest and abdomen, surgery, brain surgery, ophthalmology, otolaryngology, and gynecology and obstetrics etc

1.The main body position adjustment such as table lifting front and back right tilting are all realized by keystroke operation and linear actuator drive.

2. The surgical operation board is made of high-quality acrylic board. The mattress adopts slow recovery memory foam molding, comfortable and beautiful Memory foam mattress, evenly sharing the loading pressure, with anti-corrosion, acid and alkali resistance, breathable, easy to clean and other advantages, can achieve natural s temperature of the patient to effectively prevent bedsore

3. The leg plate can be disassembled and easy to adjust by manual rot and downward folding, very convenient for urological surgery

4. The head and leg plates are removable and easy to operate to provide more flexible space for operation

5. The hand-held controller adopts 24V DC voltage, which is easy to operate , safe and reliable

6. The hospital operating table is made of medical grade 304 stainless steel, whose surface is treated with special matt, more modern and more convenient for cleaning.

7. High-strength stainless steel bottom cover has strong pressure resistance and corrosion resistance, and is easy to clean

8. The base of the hospital surgical bed has the function of fixing or moving and bottom is equipped with wheels, which is flexible in movement and reliable

9. The electrical surgical bed can be fitted with built-in waist bridge, to provide convenience for bile, kidney and other operations

10. The main action of the operating table are as follows: The electric device, which is used to lift the table, and to tilt the table forward, back, left and right, is composed of a controller, a linear actuator, etc. The head plate, leg plate and back plate are folded rotated by air spring The machinery controls the rise of the waist plate.

11. The electronic control part is mainly composed of power supply device, control button box, etc. The power supply for the operating table is to change the external 220v ac into 24V DC drive motor by the power supply device

• The size of the table:2020(±20)*500(±20)mm

• Table height minimum: 650(±20)---maximum 950(±20)mm

• Left and right inclination of the bed 20

• Forward inclination≥25°

• Backward inclination≥20

• Back plate upward folding≥75°

• Back plate downward folding≥15°( air spring)

• Leg plate downward folding 90 which is a shaft type that can be unfolded to 180 and can be disassembled

• Rated load-bearing 135kg

• Head plate folding up: 35, folding down: 90

• Waist Bridge: 120mm up and down
