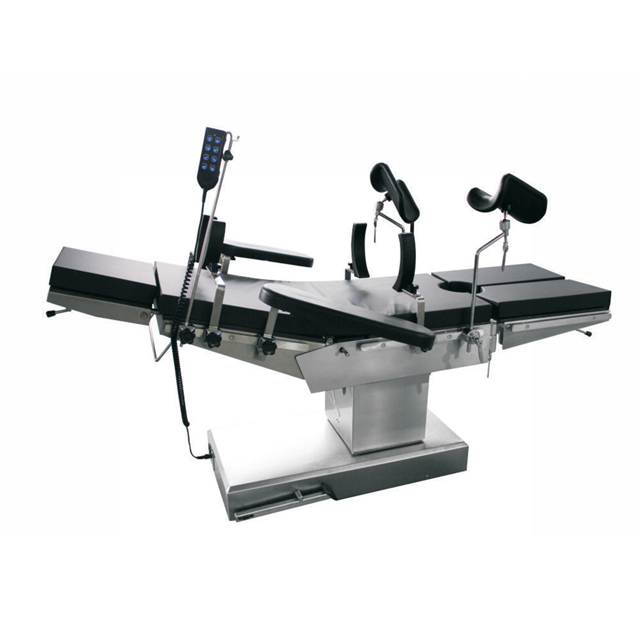

Medical Equipment Electric Surgical Operating Beds

The electric integrated operating bed, which is applied to comprehensive operation in chest and abdomen, surgery, brain surgery, ophthalmology, otolaryngology, gynecology and obstetrics, urology, orthopedics, etc, can be used in conjunction with the C –arm X-ray machine.

The main body position adjustment such as table lifting, front and rear tilting, left and right tilting, bed translation, etc are all realized by keystroke operation and linear actuator

The table can be moved longitudinally, and can be used for X-ray inspection or film taking in conjunction with the c-arm

The table board is made of high-quality acrylic board. The mattress adopts slow recovery memory foam molding, comfortable and beautiful Memory foam mattress, evenly sharing the loading pressure, with anti-corrosion, acid and alkali resistance, breathable, easy to clean and other advantages, can achieve natural shaping based on the temperature of the patient to effectively prevent bedsore

The leg plate can be disassembled and easy to adjust by manual rotating outreaching and downward folding, very convenient for urological surgery

The head and leg plates are removable and easy to operate to provide more flexible space for operation

The hand-held controller adopts 24V DC voltage, which is easy to operate, safe and reliable

The operating table is made of medical grade 304 stainless steel material, whose surface is treated with special matt, more modern and more convenient for cleaning

High-strength stainless steel bottom cover has strong pressure resistance and corrosion resistance, and is easy to clean

The base of the operating table has the function of fixing or moving, and the bottom is equipped with wheels, which is flexible in movement and reliable in fixing

The table can be fitted with built-in waist bridge, to provide convenience for bile, kidney and other operations

The main action of the operating table is as follows: The electric device, which is used to lift the table, to tilt the table forward, back, left and right, and to translate the bed, is composed of a controller, a linear actuator, etc. The head plate, leg plate and  back plate are folded and rotated by air spring The machinery controls the rise of the waist plate.

The electronic control part is mainly composed of power supply device control button box, etc. The power supply for the operating table is change the external 220v ac into 24v DC drive motor by the power supply device

Main technical parameters

• The size of the table:2020(±20)*500(±20)mm

• Table height     minimum: 730(± 20)---maximum: 1030(± 20)mm

• The longitudinal translation of the table 350+ 30mm

• Left and right inclination (roll)of the table: ≤20

• Forward inclination of the table:≤25°

• Backward inclination of the table:≤20°

• Back plate upward folding:≤75°

• Back plate downward folding:≤15°

• Leg plate downward folding: 90, which is a shaft type that can be unfolded to 180 and can be disassembled (manual)

• Rated load-bearing: 135kg
