ZQ-OTH3001
Product Description

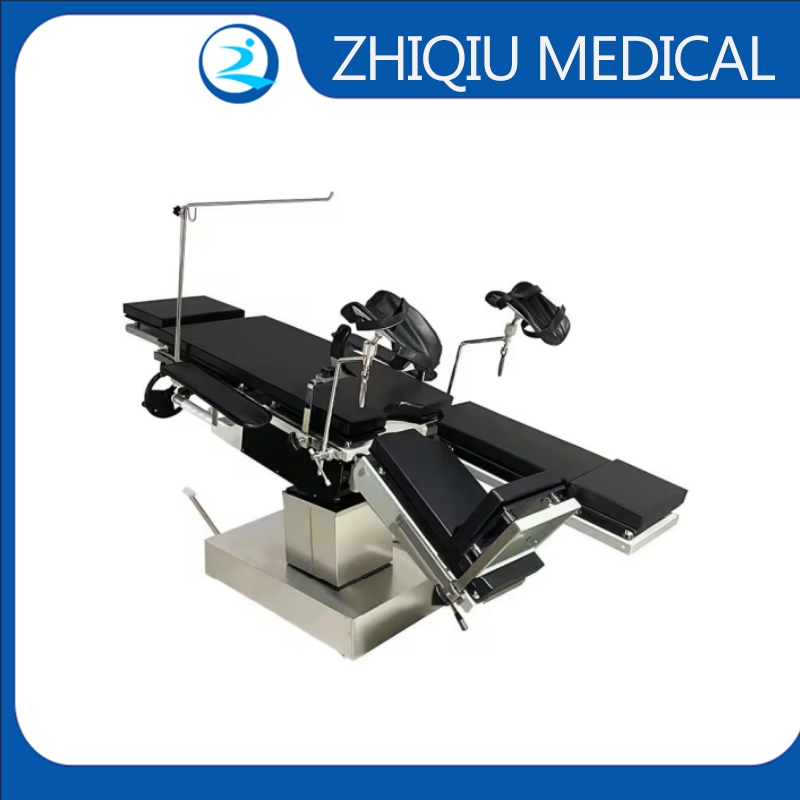

Type and model | Hydraulic Operation Table Operation Theater Equipment 3001 Operation Table Bed Manual Hydraulic |
Material | Base, shield and table top material is optional for stainless steel or power treatment |
Length | 2100 mm |
Width | 500 mm |
Elevation(up/down) | 250mm |
Trendelenburg | ≥25° |
Reverse trendelenburg | ≥25° |
Lateral tilt(left/right) | ≥20° |
Head plate(up/down) | ≥45°-90° |
Leg plate(up/down) | ≥90° |
Back plate(up) | ≥70°-18° |
Kidney bridge | ≥120 mm |
Horizontal sliding distance | 300mm |
Acessories | Arm support/Kidney bridge/Mattress/Anesthetic screen frame/ Bed body/Leg support |
Advantages | 1、The table back plate and leg plate angle adjustment are realized by worm, gear and rack these manual operation transmission 2、The table surface and shield material can be optional with high quality carbon steel power coating or high quality stainless steel. 3、The table with oil pump hydraulic lifting, the adjustable positions are controlled by both sides. 4、The table can be moved longitudinally by hand driven screw rod, which can be used together with C-arm, so it is convenient for X-ray examination and radiography. 5、Leg plate is so convenient for urology surgeries to rotate outwards, adjust and fold. 6、SXS3001 is single table. |
3001H with C-ARM X-RAY feature,radiolucentable operating table,all accessories with high quality,it is the high end manual hydraulic operation table. 3001 is used for head, neck,chest and abdominal Cavity,perineum and limbs surgery,gynecology and obstetrics, ophthalmology,otolaryngology,orthopedics and other operations in the operating room ofthe hospital.The oill pump is used for hydraulic lifting During the operation,the adjustment of body position is controlled on both sides of the table The angle adjustment of the back plate and leg plate of this side operated comprehensive operating table is realized by hand operated worm,gear and rack mechanism.Table top and cover material can be selected according to the user's requirements.
