ZQ-BE4-19B
Product Description

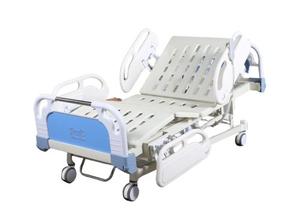

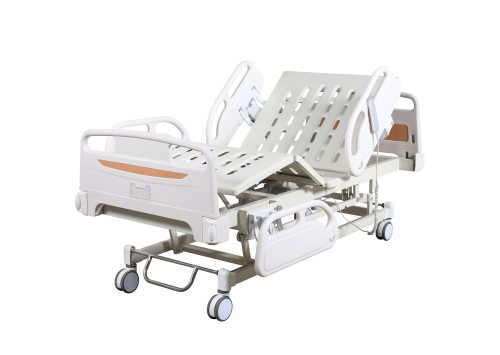

Designed for night-time visibility and patient safety, this electric hospital bed with side rails includes under-bed LED lighting, TR/ATR tilt function, and ABS control-integrated guardrails, making it an ideal choice for elderly care, recovery wards, and 24/7 medical settings.
As a China-based medical furniture manufacturer, we offer CE-certified quality and global supply chain support.
Feature | Description |
Backrest Adjustment | 0–75°, enhances patient comfort and medical care access. |
Legrest Adjustment | 0–30°, supports lower body circulation and mobility. |
TR/ATR Tilt | ±12°, electric Trendelenburg and reverse tilt assist circulation and emergency positioning. |
Height Adjustment | 510–810 mm, suitable for safe transfers and ergonomic nursing. |
Under-Bed Night Light | Soft lighting provides safe movement and visibility during nighttime care. |
ABS Side Rails with Integrated Control Panel | Ergonomic safety rails offer patient-controlled positioning and secure enclosure. |
Manual & Electric CPR Function | Enables immediate bed flattening in emergency scenarios. |
All components are CE-compliant, factory-assembled, and customizable for project or tender use.
Component | Quantity |
Control Box (Electric) | 1 pc |
Hand Control Panel | 1 pc |
Linear Motors | 4 pcs |
ABS Side Rails with Controls | 1 set |
ABS Head & Foot Boards | 1 set |
Central Locking Castors | 1 set |
Wall Bumper Wheels | 4 pcs |
Mattress Platform (4-section) | 1 set |
Parameter | Specification |
External Dimensions | 2180mm (L) × 1050 mm (W) |
Mattress Platform Size | 1980mm × 900 mm |
Height Adjustment Range | 510mm – 810 mm |
Backrest Angle | 0–75° |
Thighrest Angle | 0–30° |
Trendelenburg / Reverse Tilt | 0–12° |
Safe Working Load | 250kg |
· Soft LED Night Light: Located under the bed frame, offering low-glare navigation during late-night checks or patient movement.
· Glow-in-the-dark Control Buttons: Optional customization for quick access in the dark.
· Quiet Motor Operation: Ideal for nighttime use in shared patient rooms or elderly care centers.
· Overbed Dining Table
· Nurse Central Control Panel
· Backup Battery
· Manual CPR Lever
· IV Pole & Drainage Bag Holder
· Bed Extension
· Foot Pedal Lock System
· Anti-Pinch Safety Sensor
· Monkey Pole / Lifting Pole
· Bedside Cabinet with Lock
This hospital bed with safety side rails and night lighting is widely used in:
· Geriatric and elderly care facilities
· Rehabilitation and long-term wards
· Surgical recovery rooms
· Home nursing environments
· ICU or high-dependency units
