ZQ-BE4-16B
Product Description

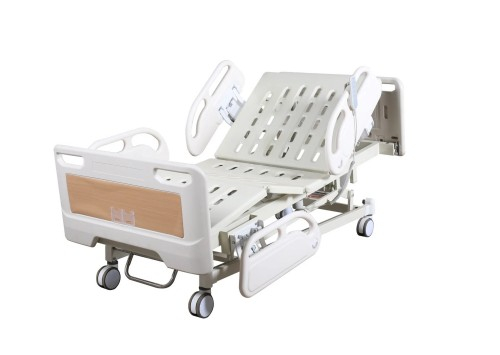

This electric hospital bed is engineered to ensure safety, reliability, and patient-centered care in intensive and general medical settings.
Parameter | Details |
External Dimensions (L×W) | 2180 mm × 1050 mm |
Mattress Platform | 1980 mm × 900 mm |
Height Range | 440 mm – 640 mm |
Backrest Adjustment | 0 – 75° |
Thighrest Adjustment | 0 – 30° |
Trendelenburg / Reverse Tilt | ±12° |
Safe Working Load | 250 kg |
Built with high-quality components to ensure stability and usability in demanding healthcare environments.
Component | Quantity |
Control Box | 1 pc |
Linear Actuator Motors | 4 pcs |
ABS Side Rails with Control Panel | 1 set |
Head & Foot Board (ABS Material) | 1 set |
Double-Side Central Locking Castors | 1 set |
Wall Bumper Wheels | 4 pcs |
Handheld Remote Control | 1 pc |
Integral Stamping Bed Surface | 1 set |
IV Pole Mounting Holes | 4 pcs |
Tailor your hospital bed with optional accessories for specific clinical needs:
High-resilience Medical Mattress
Emergency Stop Button for immediate cut-off
Stainless steel IV Pole
Backup Battery (ideal for power outages)
Bed Extension (200±10 mm for taller patients)
Monkey Pole (patient mobility support)
Extra Wall Bumper Wheels for enhanced safety
Integrated Weight Scale System
Nurse Control Panel with lock function
Manual CPR handle (backup)
Under-bed Night Light
Bedside Cabinet (with or without wheels)
Urine Bag Hooks
Detachable Overbed Table
Shoe Storage Rack
This ICU-grade hospital bed is designed for superior patient care and ergonomic convenience.
Dual CPR Function (Electric & Manual): Rapid emergency response system enhances patient safety.
Backrest Lift (0–75°): Ideal for respiratory support and comfortable positioning.
Leg/Thigh Support (0–30°): Promotes circulation and pressure relief.
Auto-Contour Technology: Synchronous movement of back and thigh sections to reduce shear and friction.
Height Adjustment (440–640mm): Optimized for patient transfer and caregiver ergonomics.
Trendelenburg / Reverse Tilt (±12°): Supports surgical positioning and hemodynamic management.
Integrated Scale System (Optional): Enables real-time weight tracking.
Central Locking Castors: Ensure smooth and stable mobility.
Wall Bumpers: Prevent accidental wall impact damage.
Under-bed Night Light (Optional): Improves night-time safety and convenience.
