ZQ-BE4-17B
Product Description

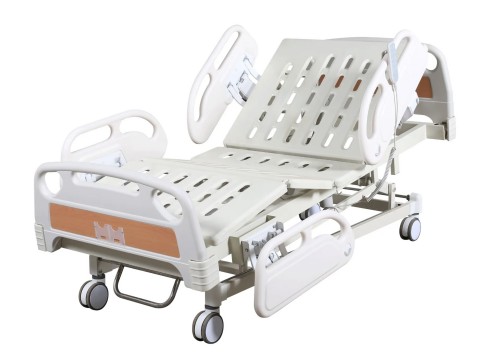

This electric hospital bed integrates advanced functionality, such as TR/ATR tilt, adjustable positioning, and optional overbed dining table, making it suitable for long-term care, recovery wards, and hospital rooms. Built by a trusted China-based hospital bed factory, this CE-certified bed ensures both patient comfort and caregiver efficiency.
Feature | Description |
Backrest Adjustment | 0–75°, supports respiratory care and reading posture. |
Thighrest & Leg Lift | 0–30°, encourages healthy circulation and pressure relief. |
Auto Contour | Simultaneous back + leg movement to reduce shear force and enhance positioning. |
Height Adjustment | 440–640 mm, improves transfer safety and ergonomic caregiving. |
TR/ATR Tilt | ±12°, provides Trendelenburg & Reverse Trendelenburg positioning for critical care and circulation support. |
Battery Backup | Ensures uninterrupted use during power outages (optional). |
Optional Dining Table | Convenient overbed table enhances patient independence and comfort. |
All components are pre-assembled with OEM customization available.
Component | Quantity |
Electric Control Box | 1 pc |
Handheld Control Panel | 1 pc |
Linear Motors | 4 pcs |
ABS Side Rails with Integrated Controls | 1 set |
IV Pole Holders | 4 pcs |
Head & Foot Boards (ABS) | 1 set |
Central Locking Double Side Castors | 1 set |
Wall Bumper Wheels | 4 pcs |
One-Piece Metal Mattress Platform | 1 set |
Parameter | Specification |
External Bed Length | 2180 mm |
External Bed Width | 1050 mm |
Mattress Platform | 1980 × 900 mm |
Height Adjustment Range | 440–640 mm |
Backrest Angle | 0–75° |
Thighrest Angle | 0–30° |
Trendelenburg / Reverse Tilt | ±12° |
Safe Working Load | 250 kg |
All options can be added based on project requirements or distributor preferences.
Overbed Dining Table
Emergency Stop Button
Rechargeable Backup Battery
IV Pole
Nurse Control Panel
Bed Extension (200 ±10 mm)
Night Light
Manual CPR Function
Urine Bag Hook
Monkey Pole / Lifting Pole
Hospital Bedside Cabinet
Extra Wall Bumper Wheels
Shoe Rack
This electric hospital bed with dining table option is ideal for:
Long-term hospital wards
Elderly care centers
Home healthcare settings
Post-operative recovery rooms
With a full range of hospital bed accessories, this model combines practicality, safety, and patient-centered design.
