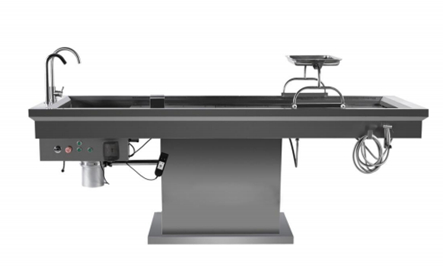

ZQ-RD-A-03 304 Stainless Steel Autopsy Table with Ventilation & Pulverizer

The Stainless Steel Autopsy Table is a professional anatomy and dissection workstation designed for pathology laboratories, medical universities, forensic institutions, and hospital mortuaries. Manufactured entirely from high-grade 304 stainless steel, the table is waterproof, corrosion-resistant, and easy to clean, ensuring long-term reliability under intensive laboratory use.
The table integrates a powerful pulverizer beneath the sink to crush dissection residues and discharge them efficiently through the drainage system. A built-in hair separator prevents blockage of drainage pipes, improving operational safety and hygiene. The negative pressure ventilation system effectively extracts harmful gases generated during dissection, creating a safer working environment when connected to an external exhaust system.
Equipped with adjustable hot and cold water supply, induction and manual faucets, and a mobile spray gun with adjustable pressure, the table supports thorough cleaning during and after procedures. Optional configurations, including organ trays, flushing heads, autopsy saws, and tabletop scales, allow customization for different laboratory requirements.

Availability:

Quantity:



Inquire Add to Basket

Model:
ZQ-RD-A-03

Product Description

Product Description

Stainless Steel Autopsy Table for Pathology and Anatomy Laboratories

The ZQ-RD-A-03 anatomy table is designed to meet the construction and safety requirements of medical colleges, hospitals, and forensic laboratories. The full 304 stainless steel structure ensures hygiene, durability, and resistance to chemical disinfectants.

Autopsy Table with Negative Pressure Ventilation System

The integrated ventilation system draws contaminated air downward through inclined side inlets and base openings, efficiently removing harmful gases generated during dissection. External ventilation connection is required.

Dissection Table with Pulverizer and Advanced Drainage System

A high-power pulverizer beneath the sink crushes solid residues, while the hair separator prevents pipe blockage. This design ensures smooth drainage and reduces maintenance frequency.

Technical Specifications

Item	Specification
Model No.	ZQ-RD-A-03
Material	Stainless Steel 304
Overall Size (mm)	L2600 × W800 × H800
Overall Size (inch)	L102.3″ × W31.5″ × H31.5″
Table Height	800 mm
Mobile Spray Gun Length	2000 mm
Pulverizer Power	560 W
Pulverizer Horsepower	1.0 HP
Pulverizer Speed	4200 r/min
Pulverizer Capacity	1200 ml
Load Capacity	200 kg
Emergency Stop Button	Yes
Handheld Remote	Yes
Voltage	220–240V / 50Hz
Optional Voltage	110–120V / 60Hz
Certification	CE
Customization	Available
