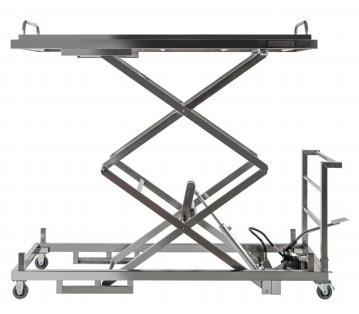

ZQ-RD-1531 Hydraulic Stainless Steel Mortuary Lifting Trolley

The Hydraulic Mortuary Lifting Trolley is a professional body handling solution designed to improve efficiency, safety, and ergonomics in hospital morgues, funeral homes, and anatomy laboratories. Featuring a pure mechanical hydraulic lifting system, this trolley enables smooth height adjustment from 450 mm to 2000 mm without electricity, ensuring energy savings and operational reliability.
Manufactured entirely from corrosion-resistant 304 stainless steel, the trolley offers long service life and easy cleaning under strict hygiene requirements. The integrated body tray is compatible with mortuary refrigerators and corpse storage racks, allowing seamless transfer during storage and transport procedures.
Designed for single-person operation, the trolley significantly reduces manual labor while increasing workflow efficiency. The trolley is equipped with four standard 125 mm castors, including two lockable wheels, providing smooth movement and secure positioning. Optional customization of lifting height and tray width is available to meet specific project requirements.

Availability:

Quantity:



Inquire Add to Basket

Model:
ZQ-RD-1531

Product Description

Product Description

Hydraulic Manual Mortuary Lifting Trolley for Hospital Morgues

The ZQ-RD-1531 is designed to assist morgues and funeral homes in lifting and transporting bodies safely and efficiently. The hydraulic foot-pedal operation allows precise height adjustment, freeing operators from heavy manual handling.

Adjustable Height Mortuary Trolley with Stainless Steel Body Tray

With an adjustable lifting range from 450 mm to 2000 mm, the trolley supports multiple working heights and aligns with mortuary refrigerators and storage racks. The independent body tray is secured with a locking mechanism to prevent accidental slipping.

Single-Person Operated Mortuary Lifting Equipment

The ergonomic design allows one operator to complete lifting and transport tasks independently, improving operational efficiency and reducing labor intensity in high-frequency mortuary environments.

Technical Specifications

Item	Specification
Model	ZQ-RD-1531
Material	Stainless Steel 304
Operation Type	Hydraulic
Operation Method	Foot Pedal
Scissor Mechanism	2
Adjustable Lift Height	450–2000 mm
Dimensions (Lowest Position)	2060 × 670 × 450 mm
Dimensions (Highest Position)	2060 × 670 × 2000 mm
Body Tray Size	1940 × 580 mm
Number of Trays	1
Tray Handles	One on each side (customizable)
Stainless Steel Thickness	1.0 mm
Load Capacity	200 kg
Castors	4 pcs (2 lockable)
Single Person Operation	Yes
