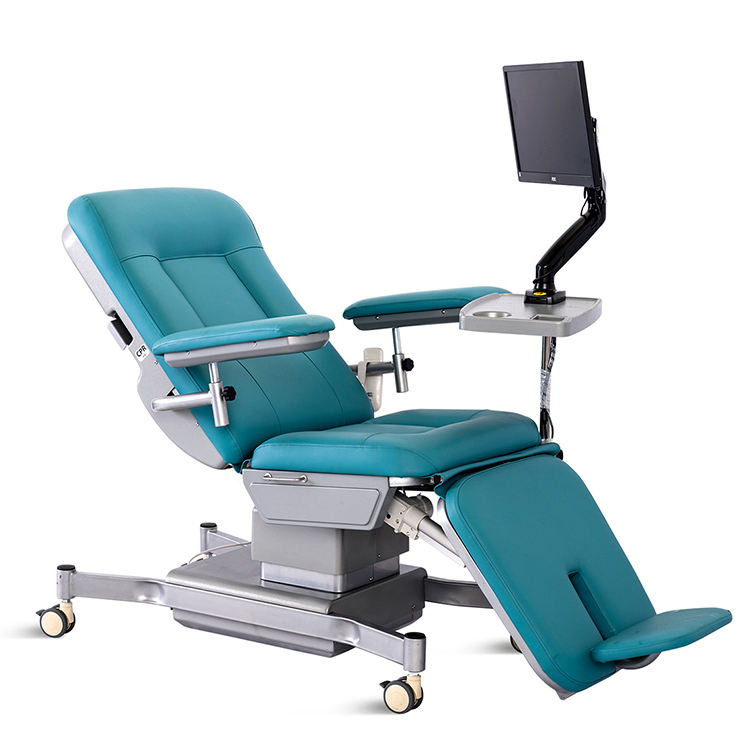

Discover a 3-position hospital recliner bed with adjustable backrest, ergonomic armrests, and electric controls. Ideal for patient recovery, infusion therapy, and elderly care, this medical recliner offers ultimate comfort and mobility.
| Quantity: | |
|---|---|
ZQ-TX15-B170D
Product Description
Key Features:
✅ Three Reclining Positions – Easily switch between sitting, semi-reclining, and full recline for optimal patient comfort.
✅ Adjustable Backrest & Legrest – Backrest reclines from 0° to 70°, while the legrest adjusts from 20° to 75°, supporting post-surgery recovery, dialysis, and infusion therapy.
✅ Upgraded Ergonomic Armrests – 360° adjustable to prevent arm sliding, ensuring safety and stability during medical
procedures.
✅ Premium Upholstery Options – Available in genuine leather or super fiber fabric, offering a luxurious feel with easy cleaning.
✅ Integrated Adjustable ABS Tray Table – Built-in cup holder, phone slot, and USB charging option for enhanced convenience.
✅ Heavy-Duty Steel Frame – Baosteel construction, featuring 11-process epoxy antibacterial coating, impact-resistant up to 50kg.
✅ Advanced Electric System – Linear motor with UL/ROHS/EN certification, ultra-quiet operation (<50dB), and 20,000 lift cycles lifespan.
✅ Smooth Mobility & Locking System – Four 100mm swivel casters, two with secure locking brakes for stability.
✅ Durable Stainless Steel IV Pole – Load-bearing capacity of 15kg, ensuring secure infusion therapy sessions.
Product Specifications
Parameter | Details |
Overall Size (L×W) | 1950×580mm (including headrest, leg rest, and pedal board) |
Seat Dimensions (W×D) | 480×580mm |
Backrest Length | 820×580mm |
Leg Rest Dimensions | 530×530mm |
Armrest Dimensions | 500×160mm |
Mattress Thickness | 70mm |
Seat Height | 520mm - 670mm (Adjustable) |
Backrest Recline Angle | 0° - 70° |
Leg Rest Recline Angle | 20° - 75° |
Armrest Swing Angle | 0° - 270° |
Footboard Adjustment | 150mm lifting distance |
Table Dimensions (L×W) | 380×280mm |
Motor Max Load | 80N |
Motor Input Voltage | 24V |
Motor Lift Speed | 0.8m/min |
Power Supply | AC 100-240V, 50/60Hz |
Weight Capacity | 240kg |
Castors | 4×100mm swivel castors (two with brakes) |
Advanced Features
✔ 360° Full Welding – Panasonic robotic welding technology for seamless, high-strength construction.
✔ High-Performance Antibacterial Coating – 11-step epoxy process, ASTM-certified, resistant to bacterial growth and impact damage.
✔ Customizable Reclining Modes – Back, seat, and leg sections move independently, ensuring tailored support for various medical needs.
✔ Detachable & Adjustable Armrests – R120° concave ergonomic design, preventing slipping and discomfort.
✔ USB Charging & Storage Features – USB/5V charging port, ideal for long treatment sessions.
✔ Hygienic & Easy-to-Clean Materials – Anti-stain, waterproof upholstery, suitable for hospital-grade disinfection.
Ideal For:
✔ Hospitals & Intensive Care Units
✔ Dialysis & Infusion Therapy Clinics
✔ Post-Surgery Recovery & Rehabilitation Centers
✔ Elderly & Long-Term Patient Care
✔ Oncology & Chemotherapy Treatment Rooms
This fully electric hospital recliner bed is the ultimate solution for patient comfort, safety, and mobility, making it an essential addition to any medical facility.
