ZQ-TX9-B100A
Product Description

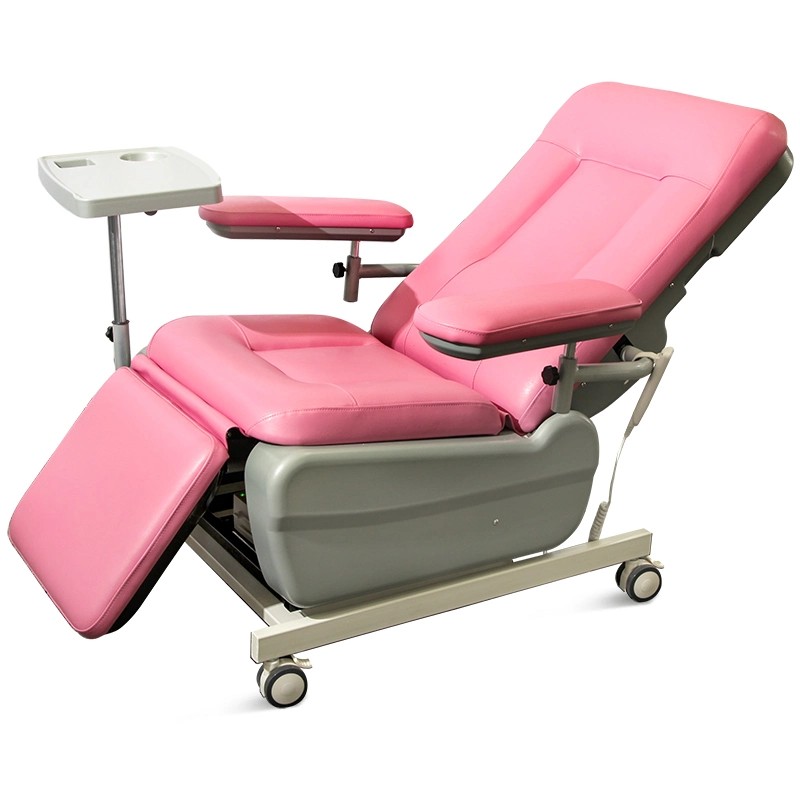

Why Choose This Medical Recliner?
✔ Dual Function Adjustment – Backrest (20°-70°) & Legrest (20° to -90°) lifting, allowing easy transition between chair and bed positions.
✔ Ergonomic Seat Design – 580mm seat height ensures optimal posture support and reduces strain on patients.
✔ Upgraded Adjustable Armrests – Right-left & front-back movement, allowing customized positioning for enhanced comfort.
✔ CPR Quick Release Feature – Fast backrest adjustment in emergencies, ensuring patient safety.
✔ Heavy-Duty Steel Frame – Baosteel construction with anti-bacterial epoxy coating, offering impact resistance and durability.
✔ Silent Electric System – American motor (UL/ROHS/EN certified) with low noise (<50dB) and 20,000+ lift cycles for long-term reliability.
✔ Smooth Mobility with Lockable Wheels – Four 100mm swivel casters, two with brakes, providing easy movement and secure positioning.
✔ Customizable Power Supply – 100-240V, 50/60Hz, adaptable to different hospital standards.
Product Specifications
Parameter | Details |
Chair Dimensions | 1950mm × 580mm |
Total Width (Including Armrests) | 820mm |
Seat Dimensions | 470mm × 580mm |
Backrest Length | 770mm |
Legrest Dimensions | 410mm × 540mm |
Seat Height | Adjustable (520mm-670mm) |
Backrest Reclining Angle | 0° - 70° (Electric) |
Seat Plate Angle | 8° - 25° |
Legrest Adjustment | 20° - 75° |
Footplate Lifting Distance | 150mm |
Armrest Adjustments | 100mm height adjustment, 0°-270° swing-out |
Handboard Size | 500mm × 180mm |
Side Table Dimensions | 380mm × 280mm |
Motor Max Load | 80N |
Motor Input Voltage | 24V |
Motor Lifting Speed | 0.8m/min |
Power Supply | AC 100-240V, 50/60Hz |
Weight Capacity | 240kg |
Castors | 4×100mm swivel castors (two lockable) |
Advanced Features
✅ Premium Anti-Bacterial Coating – ASTM-tested epoxy paint with 0.12mm thickness, impact-resistant up to 50kg.
✅ Panasonic Robotic Welding – Ensures 360° smooth and seamless welding for maximum durability.
✅ Ergonomic Concave Armrest Design (R120° Curve) – Prevents slipping, ensuring secure and comfortable arm positioning.
✅ Adjustable Foot Pedal – Height-adjustable to accommodate different user needs.
✅ High-Density Mattress Padding – 60mm thick medical-grade foam, offering superior comfort and pressure relief.
✅ Plug Options Available – Customizable hospital-grade plug to meet different electrical standards.
Ideal For:
✔ Infusion Therapy & Dialysis Clinics
✔ Hospitals & Post-Surgery Recovery
✔ Elderly & Long-Term Patient Care
✔ Chemotherapy & Oncology Centers
✔ Rehabilitation & Assisted Living Facilities
This fully electric medical recliner provides exceptional patient support, mobility, and safety, making it a must-have for modern healthcare environments.
