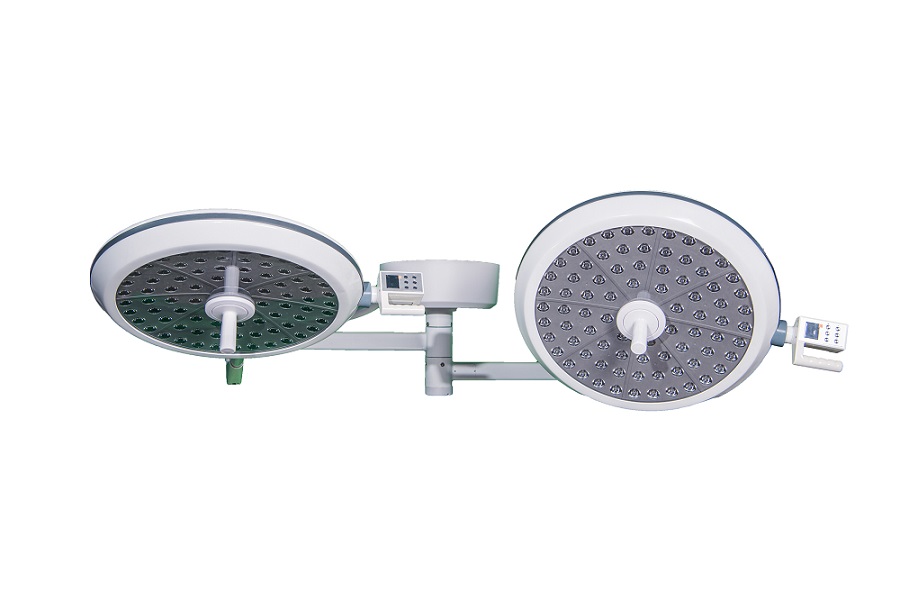

ZQ-SL500/500 LED Operation Theater Lights Surgical Operating Lamp OT Room Examination Light

hospital surgical operation lights stand led shadowless cold light operating lamp

Lamp   holder   Dia.(MM)500-             500

Illuminance                   30000-140000

Color  Temperature(K)    3700-5000K(Adjustable)

Spot  Diameter  MM           150-350

The depth of the irradiation (MM)          >1200 Brightness  Adjustment  Digital  Display   1-100

Color Rendering Index  (CRI)         ≥96%

Color  Reduction  Index  (RA)          ≥97%

Temperature at surgeon's head       ≤1℃

Temperature in operation field       ≤2℃

Power  supply  and voltage220 V±22V  50HZ±1HZ Bulb   average   lift   ≥60000h

Configuration:

1 500   lampholder          2sets

2  Disinfection  handle    4pcs

3 Lamp beads                96pcs

4  Balancer                      2sets

5 Rotating arm              1set

6 Fixed base                   1set

7 Light tools                   1set

8  Shield                          1set

9 Operating manual      1set

10 Switch power supply assembly    2sets

Scope  of  application:The  lamp  is  suitable  for  various  surgical  lighting  in  hospitals,which  is

an ideal special lighting device for modern operating rooms.

1. LED has no infrared and ultraviolet radiation,the wound healing can be speeded up and no radiation  pollution.

2. Temperature in the operation field is small,average irradiation energy is 3.8mw/m2. 3.The  rotating  arm  can  rotate  3. 60°,it  is  flexible,portable  and  non-drifting.

4. The   adopted   spring   assembly  balancer   structure  is  flexible,easy  to  be   controlled   and

positioned  exactly,largest  adjustable  range  can  be  achieved.

5. The  operation  lamp  adopts  fully  enclosed  structure  and  streamlined  design,which  fully meets the requirements of laminar flow purification and sanitation in the operating room.

6. Ultrathin design can obtain excellent laminar flow effect,the thickest is at most 10cm.
