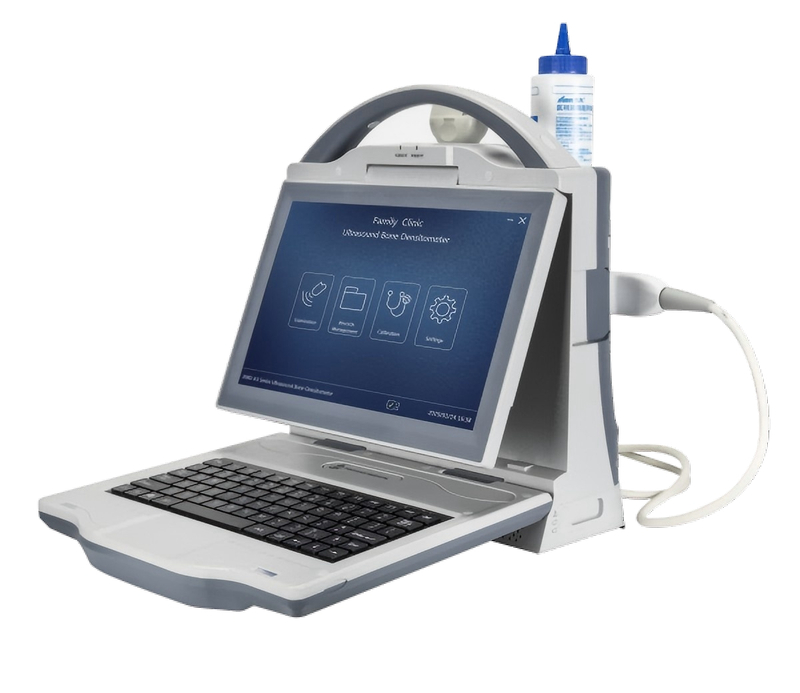

ZQ-BMD-A3 Portable Ultrasound Bone Densitometer | Accurate BMD Test Machine

The Portable Ultrasound Bone Densitometer is made for quick and accurate BMD testing. It provides a non-invasive way to screen for osteoporosis. Featuring dual-probe ultrasonic technology with enhanced signal reception, it ensures highly reliable results. The multi-ethnic clinical database supports measurement for people aged 0-100 years, complying with WHO standards.

With an ultra-lightweight 3.5kg design, this device is easy to carry, making it ideal for mobile diagnostics and clinics. The user-friendly interface allows quick operation with precise correction systems to reduce measurement errors. Certified with CE and EMC standards, this densitometer guarantees high stability and performance.

Availability:

Quantity:



Inquire Add to Basket

Model:
ZQ-BMD-A3

Product Description

Product Description

Portable Ultrasound Bone Densitometer

Advanced Features & Performance

Main Technical Features:

High-Sensitivity Probe: Uses American technology for superior signal reception and accuracy.
Advanced Ultrasound Technology: Dual-transmit & dual-receive mode with multi-directional autocorrelation for higher data density.
Precision Correction System: Reduces system errors for more accurate bone density measurements.
Comprehensive Clinical Database: Covers Europe, America, Asia, China, and WHO standards, supporting 0-100 years age range.
User-Friendly Design: Fast, simple, and convenient operation for clinics and mobile diagnostics.
Certified for Quality & Safety: First in China to pass EMC testing and EU CE certification for reliability.

Main Performance:

Measurement Sites: Radius & tibia.
Key Parameters: SOS, T-value, Z-value, bone strength index, BMI, osteoporosis risk (EOA, RRF), predicted height (11 parameters).
High Accuracy: ≤0.3% measurement error & ≤0.3% repeatability error.
Rapid Testing: <15s for adults, <3s for infants.
Smart Report Editing: Auto-addressing, case statistics, medical record correction, and bilingual conversion.
Real-Time Probe Navigation: Displays axial, horizontal, and direction angles for precise positioning and improved accuracy.
Daily Calibration & Quality Control: Power-on inspection, multi-age database (0-100 years), and temperature calibration system for reliable results.
Portable & Compact: Lightweight (3.5kg), beautifully designed, and easy to carry for on-the-go BMD testing.

This portable ultrasound bone densitometer is the perfect non-invasive tool for checking bone health. It provides high accuracy, quick operation, and worldwide compatibility for medical professionals.

Model	BMD-A1	BMD-A3
	Ultrasound Bone Densitometer	Portable Ultrasound Bone Densitometer
Configuration
Measurement parts	Radius and Tibia	Radius and Tibia
Measurement mode	double-emission and double-receiving	double-emission and double-receiving
Measurement parameters	The Speed of sound (SOS) propagates on bone axial direction	The Speed of sound (SOS) propagates on bone axial direction
Analysis Database	T- Score, Z-Score,	T- Score, Z-Score,
	Age percent[%],	Age percent[%],
	BQI(Bone quality Index ), PAB[Year] (physiological age of bone),	BQI(Bone quality Index ), PAB[Year] (physiological age of bone),
	EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk).	EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk).
Measurement Accuracy	≤0.3%	≤0.25%
Measurement Reproducibility	≤0.3%	≤0.25%
Measurement Time	Three Cycles adults measuring time <15 seconds	Three Cycles adults measuring time <15 seconds
Measurement Time	Three Cycle Children measuring time < 5 seconds	Three Cycle Children measuring time < 3 seconds
Probe Frequency	1.20MHz	1.20MHz
Probe access mode	High shielding multipoint access	High shielding multipoint access
Intelligent Database Analysis System	BMD-A1 General Intelligent Database Analysis System	BMD-A3 General Intelligent Database Analysis System
Database	Children Database: 0-12 years old	Children Database: 0-12 years old
	Teenagers Database: 12-20 years old	Teenagers Database: 12-20 years old
	Adults Database:20-80 years old	Adults Database:20-80 years old
	The Elderly Database: 80-100 yeas old	The Elderly Database: 80-100 yeas old
System Calibration	the calibration with pure copper and Perspex, double Calibrating , the standard configuration with Calibrating Module(perspex Sample)	the calibration with pure copper and Perspex, double Calibrating , the standard configuration with Calibrating Module(perspex Sample)
Mould Manufactured	Precise Brushed Metal Mould Manufactured	Portable Plastic Mould Manufactured
Mould Manufactured	Precise Brushed Metal Mould Manufactured	Portable Plastic Mould Manufactured
Configuration Trolley	━	━
Computer	Optional	Famous Import Brand Embedded Industrial Control Computer
Monitor	━	12.1 Inch
Mouse	━	Dell Original Wireless mouse
Printer	━	━
Unit Size	28cm×21cm×7cm	25cm×16cm×33cm
Unit Size	28cm×21cm×7cm	25cm×16cm×33cm
Unit Weight	3.3Kg	4.3Kg
Package Size	One carton 61cm×58cm×49cm	carton 42cm×34cm×44cm
G.W. (Kg)	25	11
N.W (Kg)	20	6
