ZQ-MOT02D
Product Description

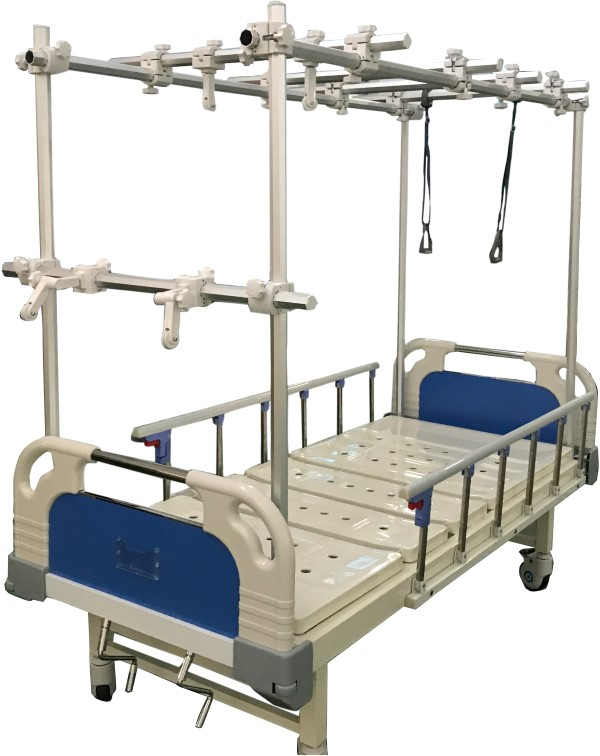

The Operated Orthopaedic Bed is designed for hospitals, rehabilitation centers, and long-term patient care. In order to enhance patient comfort and caregiver efficiency.
The four-section perforated top improves ventilation and support
Provides enhanced comfort, stability, and functionality with a manual crank system for backrest, knee rest, and height adjustments. while the adjustable backrest (0°-75°) and knee rest (0°-40°) allow optimal positioning for patients.
Equipped with a Balkan frame featuring monkey bars, pulleys, and leg traction bars for rehabilitation for traction therapy, it supports orthopedic patients requiring rehabilitation. The corrosion-resistant metal frame, collapsible safety rails, and central brake system ensure safety and durability.
Its 150mm castor wheels with central braking provide stability and mobility. Collapsible side rails enhance safety, and the included IV pole and drainage bag holder add convenience for medical settings.
Ideal for hospitals, rehabilitation centers, and home care, this adjustable orthopaedic bed includes a waterproof mattress, making it a comprehensive solution for patient care.
| Feature | Details |
|---|---|
| Product Name | Operated Orthopaedic Bed |
| Certification | CE Certified |
| Intended Use | Orthopaedic and rehabilitation patients in hospitals, clinics, and home care |
| Operation Mode | Manually operated via crank system |
| Material | Epoxy-coated steel tube |
| Bed Sections | Four-section perforated top for ventilation |
| Load Capacity | 250kg |
| Specification | Details |
|---|---|
| Bed Length | 2000mm |
| Bed Width | 900mm |
| Height Adjustment | 550mm – 700mm (±50mm) |
| Backrest Elevation | 0° – 75° (±5°) |
| Knee Rest Tilting | 0° – 40° (±5°) |
| Leg Platform | Left and right leg platforms can be raised separately |
| Component | Material & Features |
|---|---|
| Bed Frame | Epoxy-coated steel |
| Head & Foot Panels | ABS plastic with corrosion-resistant metal |
| Side Rails | Collapsible metallic side rails for patient safety |
| Bed Platform | Four-section perforated surface for ventilation |
| Feature | Details |
|---|---|
| Material | Aluminium alloy tubes |
| Functionality | Equipped with monkey bars and chains |
| Leg Traction Support | Includes pulleys and bars for leg traction |
| Feature | Details |
|---|---|
| Wheels & Brakes | 4 heavy-duty castor wheels (150mm) with central brake system |
| Side Rails | Collapsible metallic rails for safety |
| I.V. Rod | At least one adjustable IV pole |
| Drainage Bag Holder | Integrated drainage bag holder |
| Feature | Details |
|---|---|
| Mattress | Waterproof, impermeable mattress compatible with the bed model |
| Handles & Controls | Smooth manual crank system for effortless operation |
| Weight Capacity | Supports up to 250kg |
| User Application | Ideal for hospitals, rehabilitation centers, and home care |
✅ Enhanced Patient Comfort: Adjustable backrest, knee rest, and leg elevation ensure optimal support.
✅ Orthopaedic Support: The Balkan frame with traction system aids in rehabilitation and physical therapy.
✅ Durable & Sturdy: Metal construction with epoxy coating prevents corrosion for long-term use.
✅ Safe & Secure: Collapsible side rails, central braking system, and high-load capacity ensure stability.
✅ Medical-Grade Accessories: Waterproof mattress, IV pole, and drainage bag holder included.
✅ Versatile Application: Suitable for hospitals, ICUs, clinics, and home healthcare settings.
The Operated Orthopaedic Bed is a reliable, manually operated hospital bed with advanced traction therapy features for orthopaedic care. Its adjustable functionalities, durable frame, and essential accessories make it an ideal choice for medical facilities. Designed to support patient recovery and caregiver efficiency, this CE-certified bed ensures comfort, safety, and long-term usability.
