ZQ-TSD-01Q
Product Description

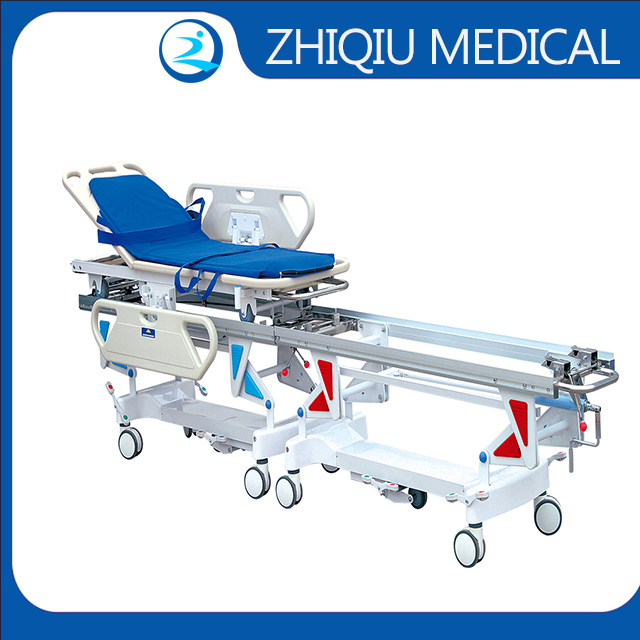

The ZQ-TSD-01Q Patient Connection Transfer Stretcher is specifically designed for safe and contamination-free patient transfer in operating rooms and critical care units. This medical patient transfer trolley consists of two separate carts with a connecting system, allowing the seamless sliding of the patient platform from one cart to another, reducing the risk of infection.
Built with an electrostatic spray-coated aluminum alloy frame, this hospital transfer stretcher ensures durability and ease of cleaning. The adjustable height (64-86cm) via crank and backrest tilt (0°-70°) with a gas spring provide optimal patient comfort. The 6-inch central-controlled castors and 5th retractable directional wheel enhance stability and maneuverability, ensuring smooth patient transport in medical environments.
SPECIFICATIONS
Technical Parameters | |
Model | ZQ-TSD-01Q |
Size | 365*64*64-97cm |
Loading Capacity | 180kg |
Safe Weight Load | 135kg |
Diameter of Castor | φ12.5cm |
Functions | |
High-Low: | 64-86cm by crank |
Back section adjustable | 0° to 70° by gas spring |
Standard Accessories | |
Side rails: 2pcs, ABS, detachable | |
2 trolleys join together, lift & down separately | |
Back section is controlled by gas spring | |
Railway for connecting 2 stretchers is also made of aluminum alloy, durable | |
Castors:12.5cm castors with central locking system | |
With 5th retractable wheel in the middle for direction | |
1crank,1 I.V. pole and 1 mattress for each trolley | |
Key Features:
✅ Two-cart connecting system for seamless patient transfer
✅ Durable aluminum alloy frame & ABS detachable side rails
✅ Adjustable height (64-86cm) & backrest (0°-70°) for comfort
✅ Sliding platform for easy transfer from trolley to bed
✅ 6-inch castors with central locking & 5th retractable wheel for precise control
✅ Includes I.V. pole, mattress, & crank system
Ideal for operating rooms, emergency departments, and critical care, this patient transfer shifting stretcher trolley enhances hospital efficiency and patient safety.
