ZQ-GTM01
Product Description

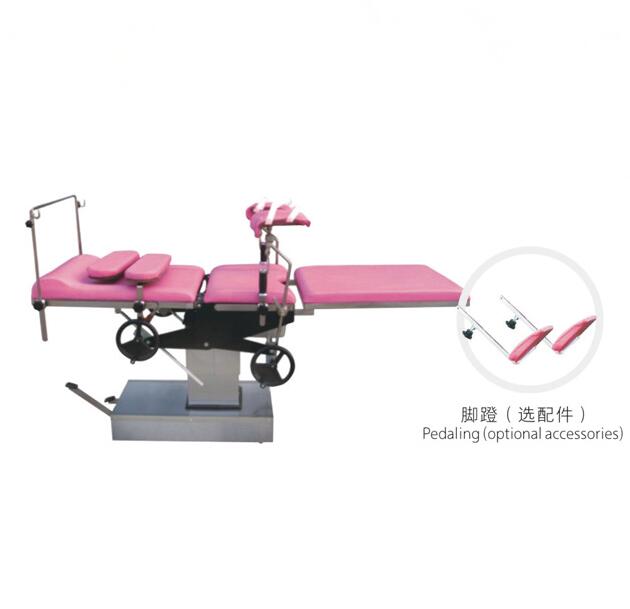

Comprehensive obstetric bed is a kind of multi-functional comprehensive baby-friendly bed developed and designed by our company according to the needs of the market, with the combination of the advice of gynecological doctors in hospitals. The pedal-operated oil pump is applied to lift the bed, while other parts of the transmission are simple and flexible manual mechanical operation. Because of the all-mechanical structure, it is not affected by the sudden events such as power outage. Therefore, it is ideal gynecological equipment thanks to its safer and more reliable in operation, as well stable in performance
The bed is designed for parturition and gynaecology operation. The bed consists of a major and an auxiliary one. The back board and the top of table are controlled by the handwheel. The major bed can be raised or lowered hydraulically by means of an oil pump.
Specifications:
Length: 1900mm
Width: 600mm
Height: 650-900mm
Back Section Up≥60°
Back Section Down≥10°
Reversed Trendelenburg ≥8°
Trendelenburg≥20°
Basic Accessories:
Anaesthetic Screen:1 set
Shoulder Rest: 2 sets
Arm Support: 2 sets
Knee Crutch: 2 sets
Step Foot: 2 sets
Cushion: 1 set
Grid hand: 2 sets
