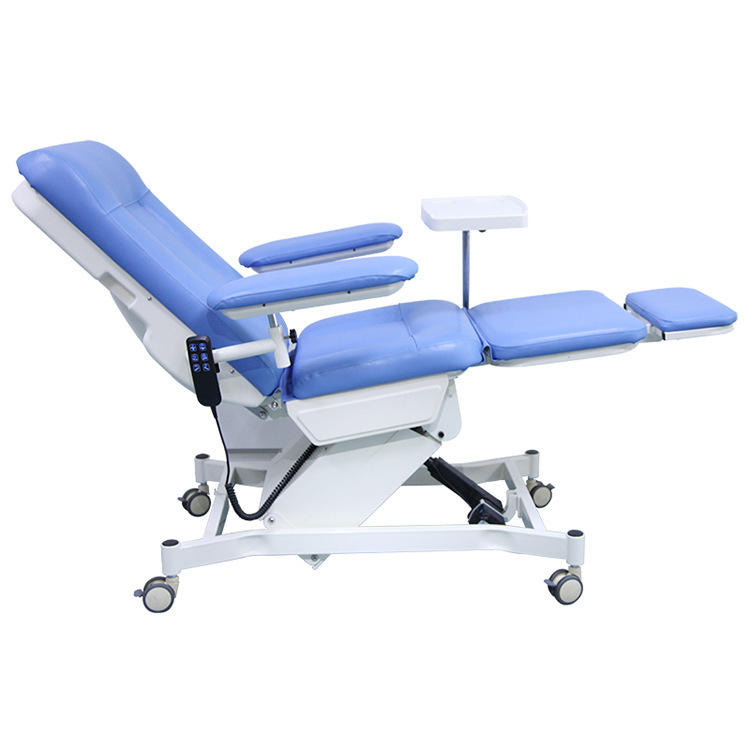

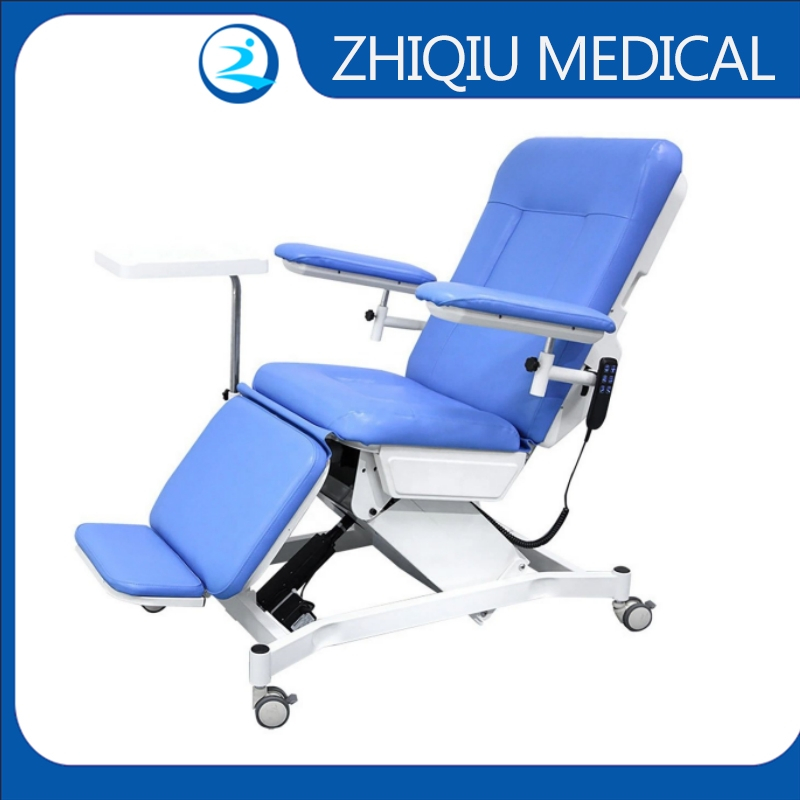

ZQ-TX7-B180 Electric Adjustment Blood Collection Chair Phlebotomy Chair Hemodialysis Dialysis Chair

1. Product use: Suitable for platelet collection component donation or whole blood donation, providing blood donors with a safe, comfortable and warm blood donation recliner;

2. Electric blood collection chair structure: four-section (backboard, seat board, leg board, footrest board) integrated electric blood collection chair, European prototype element design;

*3. Driving part: four independent electric control modes (electric push rods) drive the overall lifting, back lifting, hip lifting, leg lifting and footrest lifting, and the electric control operation adjusts the rear support position, foot rest position and the overall height of the chair body;

4. Chair surface: flexible mattress, medical-grade PU high-quality artificial leather, one-time polyurethane molding;

5. The left and right armrests are based on ergonomic principles, and the height and inclination angle are in line with the natural stretching streamline of the arms. The armrest board is designed with a concave arc of R118° to prevent the blood donor's arm from sliding, providing a safe and comfortable blood donation environment for blood donors;

6. Headrest pad: The flexible headrest pad can support the head position;

7. Electric blood collection chair material: The chair frame is made of high-quality steel, and the surface is treated with special technology, electrostatically coated, baked at high temperature of 250 degrees, and made of poly-glazed paint; the back and armrest cover are molded with ABS engineering plastics, which can be used for a long time, beautiful, comfortable, and easy to clean;

*8. Technical parameters:

8.1 Seat surface size (length × width): 2000mm × 580mm (including headrest, legrest and footrest);

8.2 Seat surface height adjustment range: 550mm～750mm;

8.3 Backboard folding angle: -8°～ 70°; seat folding angle: 10°～ 35°;

8.4 Chair front and rear tilt angle: 8°～ 15°;

8.5 Legrest folding angle: 20°～ 75°; Footrest lifting distance: 150mm;

8.6 Armrest outward swing angle: 0°～ 45°; Armrest tilt angle: -10°;

8.7 Armrest forward and backward movement distance: 100mm; Armrest up and down adjustment distance: 100mm;

8.8 Armrest board size (length × width): 460mm×160mm; Small table size (length × width): 450mm×320mm ;

8.9 Maximum motor load: 8000N; Motor input voltage: 24V; Motor lifting speed: 0.8/min;

8.10 Power supply: AC 220V, 50HZ; Maximum load-bearing weight: ≥180kg.

9. The pedal board adopts a flip-plate structure, and the foot-stepping and leg-resting functions can be freely selected;

10. The crystal board small table is installed on a rotating crank arm column frame and can be rotated horizontally;

11. The central control universal caster adopts ABS engineering plastic material, the brake control is free to move, it is quiet and stable when moving, and can move 120KG load-bearing, stable and safe
